Its optimized chemistry includes:

• ‌Key Elements‌: Nickel (≥56%), Chromium (20-22.5%), Molybdenum (12.5-14.5%), Tungsten (2.5-3.5%), and low carbon (≤0.015%)‌23.
• ‌Physical Properties‌:

• Density: 8.69 g/cm³‌23
• Melting Range: 1300–1350°C‌2
• Thermal Conductivity: 9.5–12.2 W/m·K (25–500°C)‌4
  • ‌Mechanical Performance‌:
• Tensile Strength: 690–795 MPa‌34
• Yield Strength: 310–380 MPa‌34
• Elongation: ≥40%‌3

‌Product Performance Highlights‌

1. ‌Unmatched Corrosion Resistance‌:

• Resists pitting, crevice corrosion, and stress corrosion cracking (SCC) in chlorides, sulfuric acid, and seawater‌13.
• Withstands wet chlorine, hypochlorites, and二氧化氯 (ClO₂) solutions‌37.
  2. ‌High-Temperature Stability‌:
• Maintains strength up to 600°C with creep rupture life exceeding 3,000 hours at 600°C/70 MPa‌34.
  3. ‌Weldability & Fabrication‌:
• Excellent weldability with minimal susceptibility to intergranular corrosion in welded zones‌58.

‌Production Methods‌

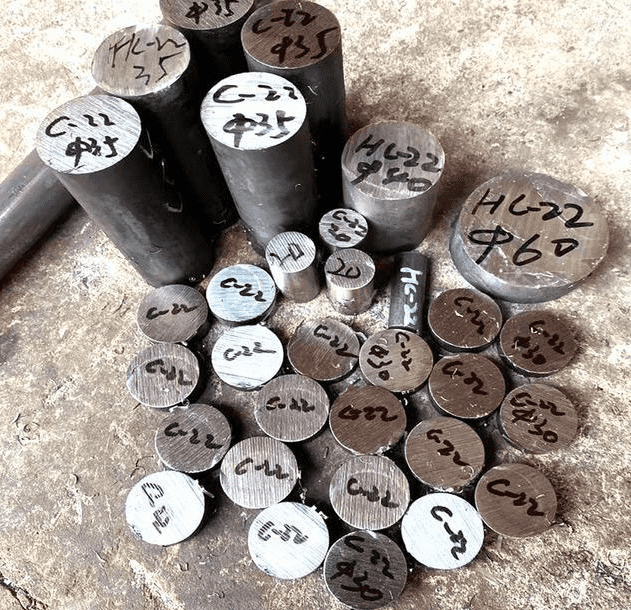

Hastelloy C22 round bars are manufactured using precision processes:

1. ‌Hot Rolling‌: For diameters ≥20mm, ensuring uniform grain structure‌46.
2. ‌Cold Drawing‌: Enhances surface finish and dimensional accuracy for precision applications‌6.
3. ‌Solution Annealing‌: Heated to 1066°C (1950°F) followed by rapid quenching to optimize corrosion resistance‌5.
4. ‌Forging‌: Custom shapes for high-stress components like valves and pump shafts‌6.

‌Equivalent Grades & Standards‌

• ‌UNS N06022‌ (ASTM B574/B575)
• ‌Alloy 22‌ (common commercial name)‌12
• ‌EN 2.4602‌ (NiCr21Mo14W)‌26
• ‌ Nr. 2.4602‌ (DIN)‌2

‌Key Application Fields‌

Hastelloy C22 round bars are critical in industries requiring extreme durability:

1. ‌Chemical Processing‌: Reactors, heat exchangers, and piping for sulfuric/hydrochloric acid handling‌57.
2. ‌Marine Engineering‌: Seawater cooling systems, offshore platforms, and desalination plants‌78.
3. ‌Oil & Gas‌: Downhole tools, valves, and scrubbers in H₂S/CO₂-rich environments‌15.
4. ‌Pharmaceuticals‌: Equipment for corrosive drug synthesis and sterilization processes‌5.
5. ‌Pollution Control‌: Flue gas desulfurization (FGD) systems and waste incineration components‌37.

‌SEO-Optimized Keywords‌

• Hastelloy C22 Round Bar Supplier
• UNS N06022 Corrosion-Resistant Alloy
• High-Temperature Nickel Alloy Round Bar
• Alloy 22 vs Hastelloy C276
• Marine-Grade Hastelloy C22 Rod
• Chemical Processing Alloy Round Bar
• ASTM B574 Hastelloy C22

Hastelloy C22 round bars deliver unmatched performance in the most aggressive industrial environments, combining longevity with cost efficiency. For technical specifications or custom orders, consult certified suppliers adhering to ASTM/EN standards.
