Choosing Between B8M Class 1 and Class 2 heavy hex bolt
Understanding the mechanical requirements of your project is essential when selecting your class:
- B8M Class 1: These fasteners are carbide solution treated. They offer maximum corrosion resistance but have lower tensile strength.
- B8M Class 2: These undergo strain hardening. This process significantly increases the yield strength, making them ideal for heavy-duty structural applications.
Common B8M Fastener Configurations
Depending on the piping or structural design, B8M material is manufactured into several critical forms:
-
- B8M Stud Bolt: The most common component used in flange bolting for high-pressure piping.
- B8M Heavy Hex Bolt: Used in structural steel connections where a larger bearing surface is required.

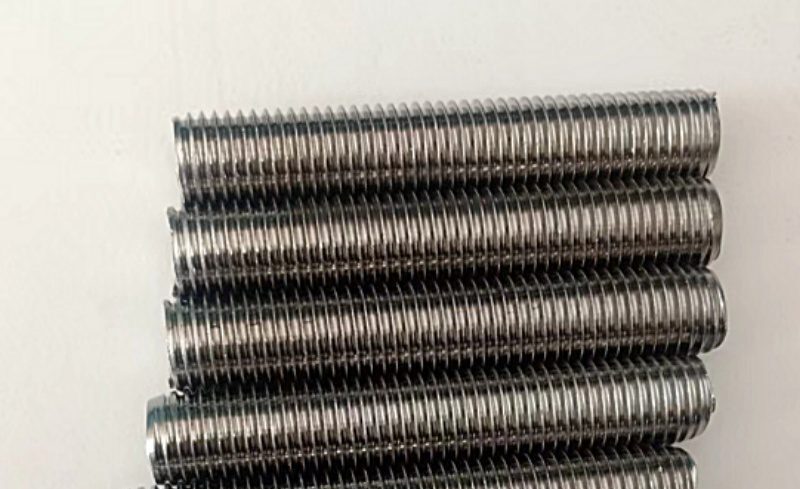

- B8M Threaded Rod: Ideal for hanging pipes or general-purpose fastening where custom lengths are needed on-site.
- B8M Anchor Bolts or U-Bolts: Essential for securing equipment to concrete foundations or securing pipes in corrosive chemical plants.
Compliance and Environmental Standards
For the oil and gas sector, material safety is non-negotiable. Our B8M fasteners meet rigorous industry standards to ensure long-term integrity:
- NACE MR0175 Compliant B8M: Essential for “sour gas” environments, these fasteners are processed to resist sulfide stress cracking (SSC).
- Thermal Stability: Designed to maintain mechanical properties in elevated temperatures without losing structural “grip.”
Why Source B8M for Your Project?
Using high-quality B8M fasteners reduces the lifecycle cost of your infrastructure by minimizing maintenance shutdowns caused by fastener failure. Whether you are building a desalination plant or a subsea manifold, Grade B8M provides the reliability that standard fasteners simply cannot match.
This technical comparison highlights the mechanical and processing differences between the two classes of ASTM A193 B8M. While both are derived from AISI 316 stainless steel, their performance under stress varies significantly due to the manufacturing process.
B8M Class 1 vs. Class 2 Comparison
| Feature | B8M Class 1 | B8M Class 2 |
|---|---|---|
| Raw Material | AISI 316 Stainless Steel | AISI 316 Stainless Steel |
| Heat Treatment | Carbide Solution Treated | Carbide Solution Treated + Strain Hardened |
| Strength Level | Lower (approx. 30 KSI yield) | Higher (up to 95-125 KSI yield) |
| Corrosion Resistance | Maximum (due to annealing) | High (slightly lower than Class 1) |
| Identification | Marked “B8M” | Marked “B8M” with an underline |
| Primary Advantage | Best for chemical stability | Superior resistance to deformation |
| Common Uses | Flanges and low-stress chemical piping | High-pressure vessels and structural marine use |
Frequently Asked Questions (FAQ) about B8M Fasteners
1. What is the difference between ASTM A193 B8 and B8M?
While both are stainless steel grades, Grade B8M contains added molybdenum (Type 316 stainless). This makes B8M significantly more resistant to chlorides and “pitting” than standard B8 (Type 304), making it the preferred choice for corrosion-resistant fasteners for marine environments.
While both are stainless steel grades, Grade B8M contains added molybdenum (Type 316 stainless). This makes B8M significantly more resistant to chlorides and “pitting” than standard B8 (Type 304), making it the preferred choice for corrosion-resistant fasteners for marine environments.
2. Can B8M Class 2 be used in high-temperature bolting?
Yes. B8M Class 2 is specifically designed for high-pressure and high-temperature bolting services. However, because it is strain-hardened, its strength may slightly decrease if exposed to temperatures exceeding
1,000∘F 537∘C) for extended periods. For extremely high heat, Class 1 is often more stable.
3. Is all B8M material NACE MR0175 compliant?
Not automatically. To be NACE MR0175 compliant B8M, the fasteners must meet specific hardness requirements (typically a maximum of 22 HRC) to prevent sulfide stress cracking in sour gas environments. Always specify NACE compliance during the quoting process.
Not automatically. To be NACE MR0175 compliant B8M, the fasteners must meet specific hardness requirements (typically a maximum of 22 HRC) to prevent sulfide stress cracking in sour gas environments. Always specify NACE compliance during the quoting process.
if you have interst to purchasing B8M heavy hex bolt class 1 or Class 2, feel free to contact us and sent us an inquiry. Thank you : )
