The Story Of 904L: From Chemical Vats to Deep-Sea Diving
The Acid Test: initially, the ancestors of 904L (like the French Uranus B6) were developed in the mid-20th century for a very unglamorous purpose: surviving the brutal environments of sulfuric acid production. Standard steels would dissolve in these tanks, so metallurgists “supercharged” the alloy with copper and extra nickel to create a metal that could literally sit in acid without flinching. The material’s transition from industrial pipes to luxury icon began in the 1970s and 80s through a partnership between Rolex and the French diving company COMEX. COMEX used 904L for their diving bells because it was one of the few materials that could withstand the high-pressure, chloride-rich environments of deep-sea saturation diving without pitting.

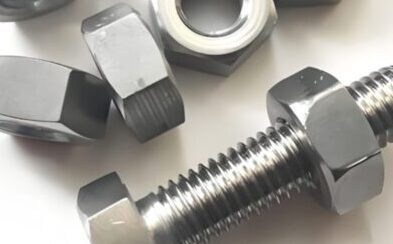

Essential 904L Fastener Types for Heavy Industry
- 904L Hexagon Head Bolts & Heavy Hex Bolts: Used in heavy-duty machinery and chemical processing tanks, these provide a large bearing surface to distribute clamping pressure.
- 904L Hex Cap Screws & Socket Head Cap Screws: Essential for tight mechanical assemblies where space is limited but high torque is required.
- 904LMachine Bolts & Metric Hex Bolts: Standardized for global mechanical equipment, ensuring compatibility across international repair and maintenance projects.
- 904L U-bolts: Crucial for securing piping systems in offshore oil rigs and chemical plants, where 904L prevents the stress corrosion cracking common in high-vibration, saline environments
| Element | Carbon (C) | Manganese (Mn) | Silicon (Si) | Phosphorus (P) | Sulfur (S) | Chromium (Cr) | Nickel (Ni) | Molybdenum (Mo) | Copper (Cu) |
|---|---|---|---|---|---|---|---|---|---|
| 904L Min | — | — | — | — | — | 19.0 | 23.0 | 4.0 | 1.0 |
| 904L Max | 0.02 | 2.0 | 1.0 | 0.045 | 0.035 | 23.0 | 28.0 |
| Property | Value (Metric) | Value (Imperial) |
|---|---|---|
| Tensile Strength | 490 MPa (Min) | 71,000 psi (Min) |
| Yield Strength (0.2% Offset) | 220 MPa (Min) | 32,000 psi (Min) |
| Elongation (in 50mm) | 35% (Min) | 35% (Min) |
| Hardness (Brinell) | 150 HB (Max) | 150 HB (Max) |
| Density | 7.95 g/cm³ | 0.287 lb/in³ |
- Standard Bolts: From DIN 933 904L bolts to heavy-duty 904L metric hex bolts (M3 to M56).
- Structural Supports: We manufacture high-quality 904L stud bolts, 904L U bolts, 904L eye bolts, and 904L threaded rod.
- Custom Coatings: For extreme friction environments, we offer PTFE coated 904L bolts to prevent galling and enhance chemical barriers.
If you have inquiryabout 904L, feel free to contact us .
